iineo+ I

SMT placement

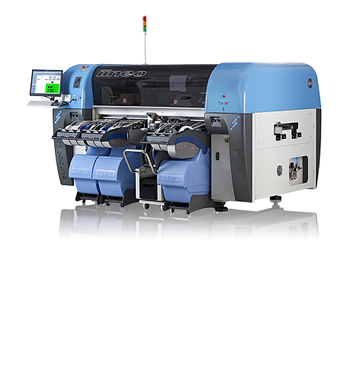

Technically speaking, the SMT placement machine iineo+ is a multi function SMT Pick and Place platform , it has the highest level of flexibility and feeder count in the industry. The machine is widely configurable without the need to compromise on feeder count, placement speed or component capability.

In reality, iineo+ is one machine with no limits, it is never having to say “no”.

Specifications:

♦ PCB sizes from 60mm x 60mm up to 1610mm x 460mm

♦ One rotary turret head with 8 or 12 placement nozzles

♦ 264 x 8mm feeders

♦ 01005 to 99 x 99mm components

♦ Component weight & height – 300g and 34mm

♦ Component testing capability – with independently verifiable calibration (UKAS / NIST / PTB… etc.)

♦ Dispensing – archemedes or air/time for glue or solder paste *

♦ Every nozzle position can place all and any component types, for real line balancing and no limitations

*Available options

SMT placement

On most of pick and place machines, the heads can only place a specific range of components.It certainly just makes life complicated. As a result you can’t effectively balance that single machine, let alone a complete line. That’s why the SMT placement machine iineo+ has genuine line balancing capabilities. All heads and all nozzle positions capable of placing the full range of components. Above all, you don’t have to compromise on feeder positions or throughput speed, production can run as efficiently as is possible. Firstly iineo+ is fitted with linear motors and digital cameras. In addition, it utilises Europlacer’s unique and proven core features such as Integrated Intelligence^TM , intelligent feeders, smart nozzles and 3D^PS. 3D^PS provides guaranteed closed loop control of pick and placement forces for all components. Importantly, iineo+ is able to produce very large boards, as it is capable of being configured to manage 1610mm x 600mm size substrates. The SMT placement pick and place iineo+ I features a single rotary head on the X/Y gantry and contains 8 or 12 ‘Smart’ nozzles, with a maximum placement rate of 15,390 cph (IPC: 12,550 cph)
